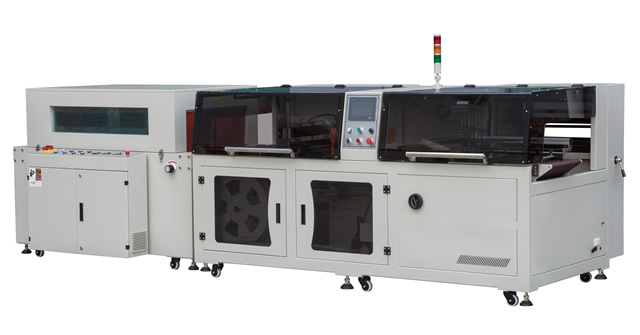

BTA-450 / 450A + BM-500 Automatic L Type Shrink Wrapping Machine


Prouduct Introduction:
Suitable for large quantities of shrinkage packaging for stationery, food, cosmetics, pharmaceutical, hardware and other industries. Imported PLC automatic program control, easy to operate, with security and alarm function, effectively prevent the wrong packaging. Equipped with import level, vertical detection of photoelectric, easy to switch options. BTA-450A also has a close function, into a small package design. The entire machine can be connected with the production of unattended operation
Main technical parameters:

model
BTA-450
BM-500
Max packing size
(L + H) 500mm & nbsp; (W + H) 430 mm (H) 130 mm
(L) 700 × (W) 450 × (H) 200mm
Max Sealing Size
(L) 550 × (W) 450mm
(L) 1000 × (W) 450 × (H) 250mm (cavity size)
Packing speed
20 ~ 35 packs/min
0 ~15 m/min
Electric Supply & Power
220V/50Hz  1.3kw
380V/50Hz  12kw
Air Pressure
5.5kg/cm3
/
Weight
500kg
260kg
Overall dimensions
(L) 1800 × (W) 800 × (H) 1600mm
(L) 1300 × (W) 700 × (H) 1400mm
